ML1H
Single local mount Temperature Switch
Adjustment ranges -45 °C...+24 °C to +66 °C...+232 °C
Description

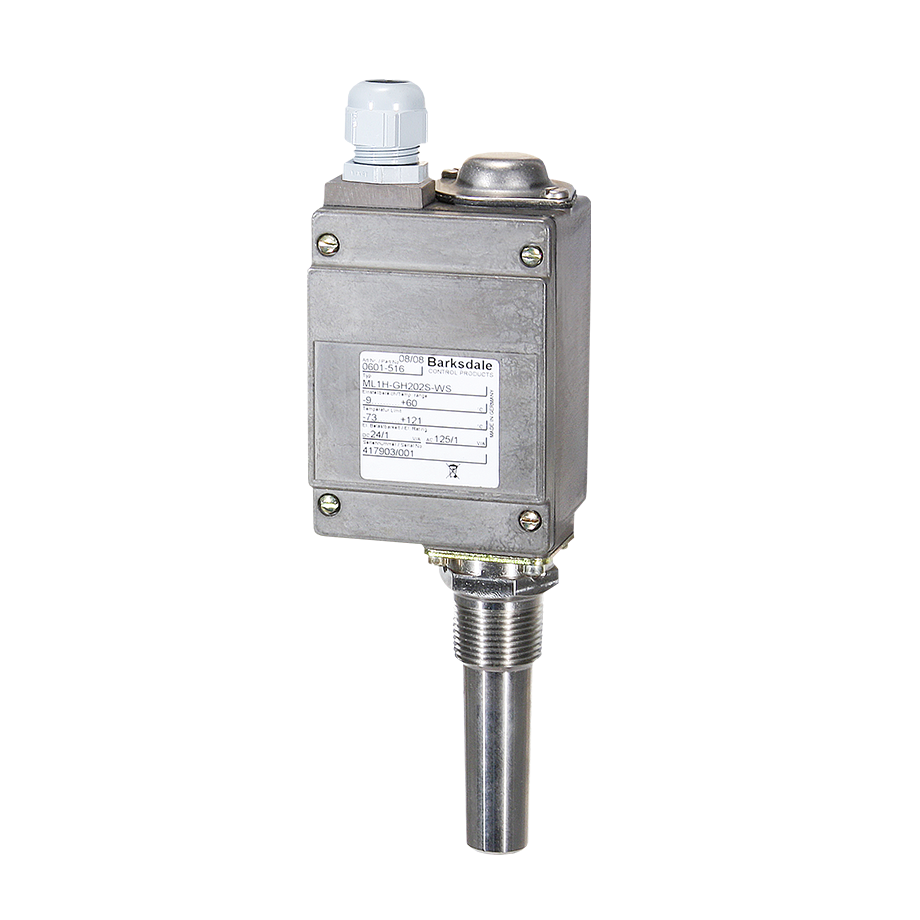

The ML1H is a single mechanical temperature switch with local remote sensor and explosion proof housing
Features
- Terminal clip and set point adjustment in °C and °F under tamper protected cover
- Protection class: IP65, NEMA 4 / 13
- Optional:
- Disconnection with manual reset, G (RD)-micro switch
- Adjustable hysteresis (switch-back difference), S-micro switch
- Thermowell in stainless steel and brass 3/4" NPT male thread
- Option thermowell: W = Brass WS = Stainless steel SS316Ti, 1.4571
- Approvals:
- Ex ia, UL, CSA
- Suitable for SIL2 (IEC 61508) acceptance
Application
Temperature monitoring in
- Machine and machine tool industry
- Shipbuildin
- Powerplants
- Antifreeze
- Heatingssystems
- compressor systems
